High Speed Film blowing machine - Wenzhou Guoran Machinery Co., Ltd

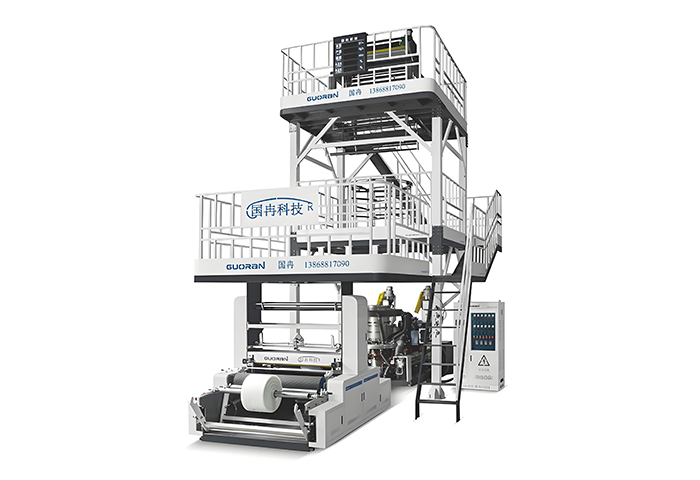

Film Blowing Machine

Guoran blown film machines integrate advanced technology and intelligent design to deliver high-performance solutions for all your film production needs, from food packaging and agricultural mulch to industrial and medical films.

✅ Boosted Productivity: Features a 32:1 L/D ratio screw design, increasing output by 20-30% while reducing energy consumption by 15-25%.

✅ Superior Versatility: Capable of processing a wide range of materials including HDPE, LDPE, LLDPE, and biodegradable polymers.

✅ Robust & Reliable: Known for exceptional durability, high output, and stable performance, ensuring consistent quality for various applications.

✅ Complete Model Range: Offers single to multi-layer co-extrusion lines to meet diverse production requirements.

Get Free Catalog

32:1 aspect ratio screw, efficiency increased by 20-30%

Permanent magnet variable frequency motor, energy-saving 15-25%

Automatic wind ring adjustment, thickness tolerance ± 2%

Multi layer co extrusion stabilization technology, 7 × 24h production

GR-SJ45

PBAT PLA Cornstarch Granules Fully Biodegradable Film Blowing Machine

Screw Diameter:⌀45

Film Width:100-550mm

Film Thickness:35-55kg/h

Output:30:1(alloy)

Compare

GR-900

Three-Layer Co-Extrusion ABC Film Blowing Machine

Screw Diameter: ⌀50*3

Film Width: 800mm

Film Thickness: 0.01-0.10mm

Output: 120kg/h

Compare

GR-SJ700-1100

ABA AB High Speed LDPE HDPE Film Blowing Machine

Screw Diameter: ⌀45

Film Width: 100-700mm

Film Thickness: 0.01-0.25mm

Output: 80kg/h

Compare

GR-SJ1300-1500

Two-layer Co-extrusion PE High-speed Film Blowing Machine

Screw Diameter:⌀60

Film Width:200-1200mm

Film Thickness:0.01-0.25mm

Output:160kg/h

Compare

GR60-1300ABA

AB Co-Extrusion Color Strips Film Blowing Machine

Screw Diameter:⌀60

Film Width:1200mm

Film Thickness:Single Face 0.002s-0.15s (HDPE)

Output:120kg/h

Compare

GR55-1100

High Speed PE LDPE HDPE Blown Film Extruder

Screw Diameter:⌀55

Film Width:1000mm

Film Thickness:Single Face 0.002s-0.15s (HDPE)

Output:120kg/h

Compare

GR50-900

Biodegradable Mini Extrusion Film Blowing Machine

Screw Diameter:⌀50

Film Width:800mm

Film Thickness:Single Face 0.002s-0.15s (HDPE)

Output:80kg/h

Compare

GR-600

Zipper Lock Film Blowing Extruding Machinery

Screw Diameter: ⌀50

Film Width: 500mm

Film Thickness: 0.03-0.11mm

Output: 30kg/h

Compare

CORE FEATURES OF Film Blowing Machine

AUTOMATION & PRECISION CONTROL

Advanced servo system ensures stable bubble formation and uniform film thickness.

Fully automated winding and cutting reduce manual labor by up to 50%.

PLC + HMI touch screen enables remote monitoring and parameter adjustment.

WIDE COMPATIBILITY AND CUSTOMIZABLE

Produces HDPE, LDPE, LLDPE, and biodegradable (PLA/PBAT) films.

Modular design allows flexible die head, cooling, and winding configurations.

Supports customized sizes, materials, and printing for diverse market needs.

QUALITY ASSURANCE THROUGHOUT THE PROCESS

We know that the quality of our equipment is the lifeblood of our production line. For this reason, we have established a precise inspection system throughout the entire life cycle of the equipment to ensure that each piece of equipment can withstand the most stringent quality tests.

Raw material incoming inspection →

Production quality monitoring →

Whole machine inspection standard →

Customer on-site service guarantee →

Raw material incoming inspection

We strictly implement source quality control, and all raw materials entering the factory must pass professional testing. Metal materials are analyzed using a German imported spectrometer for composition, and key mechanical components are measured using a coordinate measuring instrument to ensure dimensional accuracy of 0.005mm.

Production quality monitoring

In the production and manufacturing process, we implement full process quality tracking. 100% full inspection system is implemented for the processing of key components, and the deviation of spindle dynamic balance is controlled within 0.01mm. Establish complete quality records for each production process to achieve full traceability.

Whole machine inspection standard

Each device must undergo a comprehensive test of 120 hours before leaving the factory. Including 48 hours of no-load operation test for the accuracy of each axis motion, and 72 hours of full load production verification for stability. Ensure the safety and reliability of the equipment.

Customer on-site service guarantee

We provide professional on-site installation and debugging services, use customer specified raw materials for 24-hour continuous production verification during acceptance, and complete operator training. Establish lifelong equipment records to provide customers with continuous quality assurance.

What types of blow film machines do you offer?

We offer:

Single Screw Extruder Blow Film Machine: Suitable for basic PE, LDPE, HDPE films.

Twin Screw Extruder Blow Film Machine: Ideal for recycled materials and high-filled films.

High-Speed Blow Film Machine: Increases production capacity, stable operation.

Multi-Layer Co-Extrusion Blow Film Machine: Suitable for multi-layer composite and functional films.

What is the production capacity and speed of your machines?

Depending on the model and material configuration, the production capacity ranges from 50kg/h to 300kg/h, with film width ranging from 50mm to 2000mm, and capable of high-speed operation.

Can recycled or filled materials be used?

Yes, especially with the twin screw extruder machines, which are designed to handle recycled materials and high-filled resins, reducing production costs.

What is the failure rate of the equipment running continuously for 30 days?

Under standard operating and maintenance conditions, the failure rate for 30 consecutive days is less than 1%.

Is special configuration required for PLA/PBAT material production?

Yes. For PLA/PBAT and other degradable materials, we provide special screw, temperature control system and exhaust structure to adapt to their processing characteristics.
