GR-SJ1300/1500

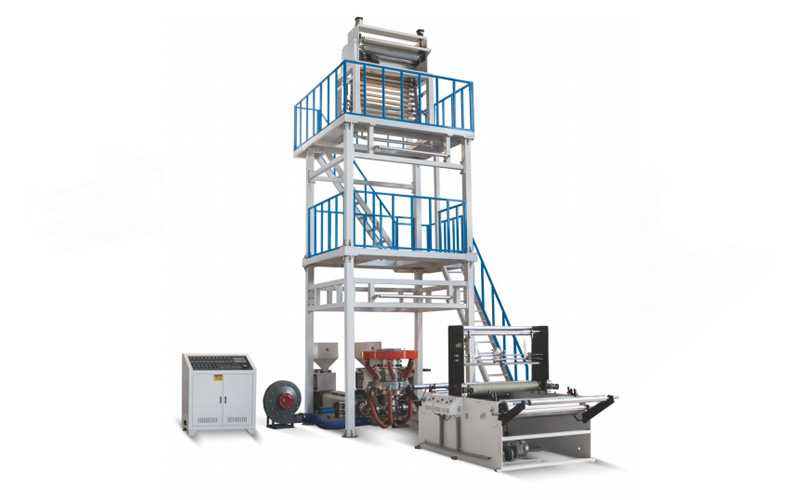

Two-layer Co-extrusion PE High-speed Film Blowing Machine

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitriding, So it is sound in hardness,durable in corrosion resistance.

Screw Diameter:⌀60

Film Width:200-1200mm

Film Thickness:0.01-0.25mm

Output:160kg/h

GET A QUOTE →

Two-layer Co-extrusion PE High-speed Film Blowing Machine

upload/1c/202507/two-layer-co-extrusion-pe-high-speed-film-blowing-machine-3.jpg

upload/1c/202507/two-layer-co-extrusion-pe-high-speed-film-blowing-machine-4.jpg

upload/1c/202507/two-layer-co-extrusion-pe-high-speed-film-blowing-machine-5.jpg

upload/1c/202507/two-layer-co-extrusion-pe-high-speed-film-blowing-machine-6.jpg

DESCRIPTIONS
MACHINE HIGHLIGHTS
PARAMETERS
CORE COMPONENT
OPTIONAL ACCESSORIES

DESCRIPTIONS

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitriding, So it is sound in hardness,durable in corrosion resistance.

MACHINE HIGHLIGHTS

The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.

It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

PARAMETERS

Model	GR-SJ1300	GR-SJ1500
Screw Diameter	⌀60	⌀65
L/D	30 : 1	30 : 1
Fim Width	200-1200mm	200-1400mm
Film Thickness(single)	0.01-0.25mm	0.01-0.25mm
Output	160kg/h	280kg/h
Power of Main Motor	30KW	30KW
Rotation	⌀35	⌀35
Dimension	5.0x2.8x6.0m	5.0x2.9x6.0m
Weight	3.0T	3.2T

OPTIONAL ACCESSORIES

GT-A1300 Horizontal Slitting Machine

Optical and Electrical Correction Frame

JL-8T Hydraulic Punching Machine

Auto Loader

FS-250 Plastic Grind Machine

BGDC-200【300】Plastic Film Impactor

Taiwan OUGUAN Fan Blower

Mould

Vertical Mixer

Horizontal Mixer

Air Cooler

Pneumatic Punching

Hdpe Air Ring With Double Tuyere

Reducer

Servo Motor

GT-A1300 Horizontal Slitting Machine

Optical and Electrical Correction Frame

JL-8T Hydraulic Punching Machine

Auto Loader

FS-250 Plastic Grind Machine

BGDC-200【300】Plastic Film Impactor

Taiwan OUGUAN Fan Blower

Mould

Vertical Mixer

Horizontal Mixer

Air Cooler

Pneumatic Punching

Hdpe Air Ring With Double Tuyere

Reducer

Servo Motor

RECOMMENDED MODELS

High Speed PE LDPE HDPE Blown Film Extruder

AB Co-Extrusion Color Strips Film Blowing Machine

Screw Diameter:⌀60

Film Width:1200mm

Film Thickness:Single Face 0.002s-0.15s (HDPE)

Output:120kg/h

Biodegradable Mini Extrusion Film Blowing Machine

High Speed PE LDPE HDPE Blown Film Extruder

Screw Diameter:⌀55

Film Width:1000mm

Film Thickness:Single Face 0.002s-0.15s (HDPE)

Output:120kg/h

PBAT PLA Cornstarch Granules Fully Biodegradable Film Blowing Machine

Screw Diameter:⌀45

Film Width:100-550mm

Film Thickness:35-55kg/h

Output:30:1(alloy)

PERHAPS YOU HAVE OTHER BAG MAKING NEEDS?

In order to ensure that the production fully meets your needs, we also provide professional bag-making machine customization service, which can be adjusted individually according to your actual production needs, including special sizes, material adaptation and function expansion, etc., to ensure that the equipment perfectly matches your production requirements.
