What turns a 35‑minute bag size changeover into a 5‑minute job?

A retail packaging plant ran two shopping bag orders back‑to‑back: 200,000 pieces of 300×400mm supermarket bags followed by 150,000 pieces of 250×350mm boutique bags. Their old machine took 35 minutes to switch sizes — resetting sealing temperature, bag length, photo eye position, and cutting knife timing. The production line lost nearly an hour of runtime every time the job changed.

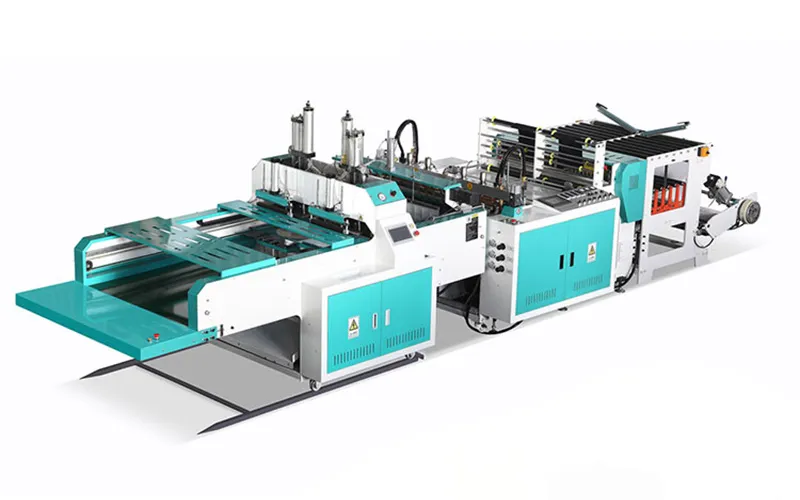

A bag making machine with recipe storage and servo‑driven adjustments changes that math. The Plastic Shopping Bag Making Machine from Guoran uses a PLC + servo motor control system that stores production parameters for each bag size. The operator saved the settings for the 300×400mm bag once. When the 250×350mm order came up, they recalled the recipe, and the machine automatically repositioned the sealing knives, adjusted the material feed length, and set the photoelectric eye tracking. The changeover took under 5 minutes.

This article explains how heat sealing cold cutting differs from hot‑cut methods, why 0.01‑0.05mm thickness range covers both lightweight retail bags and heavier grocery carriers, and where the 100‑400 bags per minute speed rating actually lands when the stacker becomes the real production limit.

Heat sealing first, cold cutting second: why a cooled knife leaves a cleaner bag mouth than a hot blade

A bag that separates at the seal or has melted, rolled‑over edges at the opening points to cutting method mismatch. A hot‑cut machine uses a heated blade to both seal and cut in one motion. The heat that melts the plastic to seal the bag also melts the cut edge, leaving a rolled or fused opening that is hard to open on a retail checkout counter.

The Plastic Shopping Bag Making Machine uses heat sealing cold cutting technology. The process happens in two stages: the sealing bar applies heat and pressure to fuse the bag bottom seal, then a separate, unheated cutting knife severs the bag along the seal line. Since the knife is not heated, the cut edge remains clean and flat. The bag opening stays crisp, and cashiers can open it with one hand rather than rubbing the edges apart.

The two‑step also protects the knife. A hot blade softens with repeated heating and can warp after extended runs. The cold‑cut knife operates at room temperature, so it maintains its edge geometry through thousands of cycles, reducing the frequency of blade changes and the associated downtime.

Data sourced from Plastic Shopping Bag Making Machine specifications

0.01‑0.05mm thickness range: why a machine that runs both thin promotional bags and thick grocery carriers uses the same drive system

A bag making machine that switches between 0.01mm lightweight promotional bags and 0.05mm heavy‑duty grocery carriers must maintain consistent feed tension across a 5x thickness variation. Thin film stretches under too much tension, causing bag length drift. Thick film requires higher pulling force to maintain registration.

The machine uses a servo motor drive system (Inovance brand) that delivers consistent torque across the full thickness range. The servo adjusts pulling force in real time based on material thickness. When the operator loads a roll of 0.05mm film, the servo increases its holding torque; when 0.01mm film is loaded, torque backs off automatically through the stored recipe. The driver does not require mechanical adjustment.

The feed length accuracy determines whether the printed registration mark lands in the correct position. The photoelectric eye (Panasonic) reads the registration marks on pre‑printed film. If the mark arrives early or late, the servo compensation adjusts the pull length for the next bag, bringing registration back into spec without stopping the line. For a supermarket chain running custom‑printed bags, this tracking prevents blank or misprinted bags from reaching the checkout counter.

100‑400 bags per minute with two lines: why the stacker runs full in 4 minutes if the operator doesn’t clear it

The Plastic Shopping Bag Making Machine is a two‑line machine. It produces two parallel lanes of bags simultaneously from a single wide roll of film. At maximum speed of 400 bags per minute per line, the machine outputs 800 bags per minute total. That is roughly 48,000 bags per hour. At that rate, a stacker holding 200 bags fills in 15 seconds.

The stacker is designed for this volume. It uses a double‑platform system that swings a second stacker into place while the operator removes the finished bundle from the primary platform. The machine does not stop for stack clearance. The operator changes empty core rolls and clears the stacker during runtime rather than during planned stops.

A bag making machine that runs two lines also consumes twice the material. The unwind station uses a double web feeding system with separate tension controls for each web, preventing one line from pulling misaligned while the other runs true. If one web breaks or a splice arrives, the machine can continue running the good line while the operator repairs the other, maintaining at least partial production instead of a full stop.

PLC + servo control with one‑click recipe recall: how a touch screen stores 50 job profiles

The Plastic Shopping Bag Making Machine is equipped with an Inovance PLC and touch screen HMI. The operator saves profiles for each bag size: bag length, sealing temperature, cutting knife timing, photoelectric sensitivity, and feed length offset. A grocery bag plant that runs 12 different sizes across a shift loads the next job profile, and the servo‑driven mechanisms reposition automatically.

The machine also tracks consumable life. The PLC logs the number of sealing cycles and alerts the operator when the sealing bar or cutting knife is due for replacement, shifting maintenance from “when it breaks” to “when the counter says so.” For a plant that runs two shifts, the preventive maintenance alert prevents the mid‑shift failure that stops production for an hour while a technician replaces a worn sealing tape.

How the Plastic Shopping Bag Making Machine fits into a retail packaging line

Guoran Machinery (Wenzhou Guoran Machinery Co., Ltd.) has manufactured bag making equipment for the retail packaging industry. The Plastic Shopping Bag Making Machine is designed for converters producing grocery store bags, boutique merchandise bags, and eco‑friendly carrier bags.

The machine uses 14mm steel plate construction for the main rack, ensuring vibration‑free operation at 400 bags per minute. NSK bearings on rotating components extend service life between rebuilds. Total power consumption is 16kW, including sealing heaters, servo drives, and the control system.

Major electrical components include Inovance for PLC and main servo motor drive, Chint for electrical appliances, Panasonic for the photoelectric eye, Schneider for temperature control, and NSK for bearings. The machine is compatible with HDPE, LDPE, LLDPE, and biodegradable films. Optional accessories include a hydraulic punching unit for handle holes, a horizontal slitting machine, and an auto loader for raw material rolls.

A bag making machine that stores job parameters and adjusts sealing and cutting automatically for each bag size saves 30 minutes per changeover, runs both lightweight promotional carry bags and heavy‑duty grocery carriers on the same servo drive, and uses heat sealing cold cutting to produce bags with clean openings that cashiers can open one‑handed. For a retail packaging converter running multiple bag sizes daily, the Guoran Plastic Shopping Bag Making Machine delivers the two‑line speed, recipe memory, and cold‑cut edge quality that keeps the packing station supplied.

【Request a quote from Guoran Machinery】
Send Guoran your target bag size (length 260‑800mm, width 100‑400mm), thickness range (0.01‑0.05mm), and daily bag volume to receive a Plastic Shopping Bag Making Machine specification and recipe setup recommendation.
