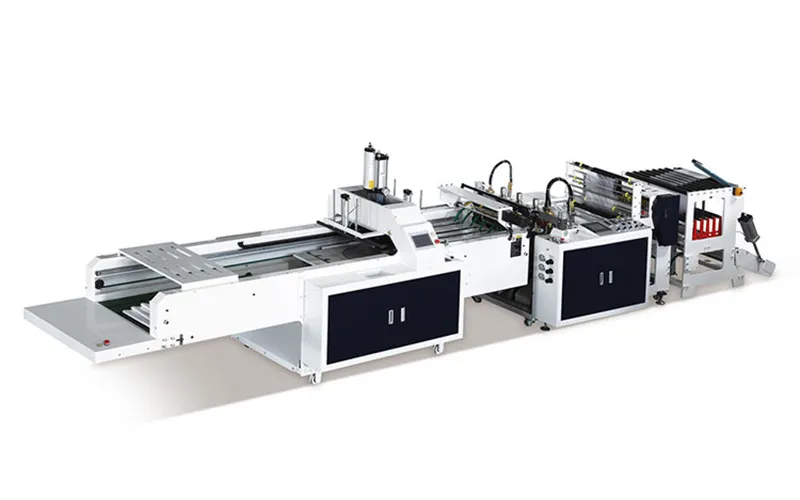

What does a plastic garbage bag making machine actually do?

The machine starts with a roll of film — HDPE for thin, stiff trash bags or LDPE for stretchy, flexible ones. The film unrolls, passes under a set of guide rollers, and enters a sealing station where heated bars melt the edges together to form the bag's side seam. Then a cutting knife separates the bag from the film web. The finished bag drops onto a stacker, counted automatically, ready for packing or boxing. This cycle repeats 100 to 400 times every minute.

That simple sequence describes a bag making machine for plastic garbage bags. The machine is designed as a two‑line system, producing two lanes of bags simultaneously from a single roll of film. The operator sets the bag dimensions — width from 100mm to 400mm, length from 260mm to 800mm — on the PLC touch screen. The machine handles film thickness from 0.01mm to 0.05mm and processes HDPE, LDPE, LLDPE, recycled resin, and biodegradable materials. This article explains how the machine seals without melting the entire bag, why cold cutting leaves a cleaner bag mouth than hot cutting, and where the automatic stacker saves the operator from standing at the delivery end all shift.

Two lines at once: why a double‑lane machine doubles output without doubling floor space

A single‑lane bag making machine produces one bag per cycle. A bag making machine with two lanes, like the Plastic Shopping Bag Making Machine, produces two bags per cycle — essentially doubling the output from the same footprint. The film is slit in half lengthwise as it feeds through the machine. One half becomes the left lane, the other the right lane. Two sets of sealing bars and cutting knives operate simultaneously, synchronized by the PLC.

For a garbage bag manufacturer running 400 bags per minute per lane, the two‑lane machine outputs 800 bags per minute total — 48,000 bags per hour. At that rate, a stacker holding 200 bags fills in 15 seconds. The double‑platform stacker swings a second platform into place while the operator removes the finished bundle from the primary platform. The machine does not stop for stack clearance.

The two‑lane design also saves material. The center cut between lanes eliminates the need for edge trim on both sides of a wide single‑lane web. For a plant running 1,000 tons of film per year, that edge trim reduction saves 3‑5% of material cost. The film is slit precisely, and the waste strip is drawn into a vacuum collection system.

Heat sealing first, cold cutting second: why the bag mouth stays open after cutting

A garbage bag that seals at the bottom but has a fused opening is difficult to open at the point of use. The user must rub the edges apart, wasting time. A bag making machine that uses heat sealing cold cutting technology solves this.

The process happens in two stages. First, a heated sealing bar applies pressure to the overlapping film layers, melting the polyethylene coating to form the bottom seal and the side seals. Then, a separate, unheated cutting knife severs the bag along the seal line. The knife is not heated, so it does not melt the cut edge. The bag opening remains crisp, and the end user can open it with one hand.

The two‑step process also protects the knife. A hot blade softens with repeated heating and can warp after extended runs. The cold‑cut knife operates at room temperature, maintaining its edge geometry through thousands of cycles. For a plant running two shifts, the cold‑cut knife may last a year before replacement, while a hot blade would need replacement every 3‑4 months.

The sealing temperature is adjustable through the PLC. For thin 0.01mm HDPE, the operator sets a lower temperature to prevent burn‑through. For thick 0.05mm LDPE, the temperature is increased to ensure a full melt. The temperature is displayed on the touch screen and stored in the job recipe.

Photoelectric tracking: why the machine stops when the print mark is missing

Printed garbage bags have registration marks — small dark squares printed on the film edge — that tell the machine where to cut and seal. If the film stretches or the printing cylinder slips, the registration mark shifts. A machine without tracking will cut through the middle of the brand logo.

The Plastic Shopping Bag Making Machine integrates photoelectric tracking with two‑way correction. A photoelectric sensor (Panasonic) reads the registration mark in real time. When the mark arrives earlier or later than expected, the PLC calculates the error and adjusts the bag pull length for the next cycle, shifting the cut position back into register.

If the sensor fails to detect a mark at the expected interval — because a film splice passes through, the ink density varies, or the film slips — the machine triggers a malfunction alarm and stops immediately. The operator corrects the film position or replaces the damaged roll and restarts. The scrap material wasted is limited to one or two bags. For a line running 400 bags per minute, avoiding a 30‑second blind run of 200 misprinted bags can save 200 bags of material plus the labor to sort them.

The machine also includes an auto‑sample function that automatically ejects one bag every programmed number of cycles into a separate bin, allowing the operator to inspect registration and seal quality without stopping the line.

14mm steel plate construction: why the frame does not shake at 400 cycles per minute

A bag making machine running at 400 cuts per minute cycles once every 0.15 seconds. The moving parts stop and start violently. If the frame flexes, the sealing bars will not align precisely, and the bags will have crooked seals or uneven lengths.

The machine uses 14mm steel plate construction for the main rack. This thickness exceeds many competitors in the same price range. The thick steel dampens vibration at high speed, preserving cut squareness and seal alignment. The frame is manufactured from heavy steel plate, welded and stress‑relieved to prevent warping over time.

The NSK bearings on rotating components extend service life between rebuilds. The bearings are rated for 50,000 hours of operation at full load. For a plant running two shifts (16 hours per day), that is over eight years of service before bearing replacement. The rubber rollers in the feed section are made of polyurethane, which outlasts natural rubber in applications where the film contains abrasive fillers from recycled material.

The main rack construction includes the unwind stand, the sealing section, the cutting station, and the stacker. The unwind stand is built with a heavy‑duty frame to support jumbo rolls weighing up to 200kg. The stand uses a pneumatic brake to maintain constant tension as the roll diameter decreases, preventing film wander that would cause misaligned seals.

Inovance PLC and touch screen: how the operator changes from 50x60cm to 40x50cm in minutes

A grocery bag plant may run 12 different sizes across a shift. A mechanical bag making machine requires the operator to manually adjust bag length stops, sealing bar timing, and photoelectric sensitivity. Each adjustment costs 5‑10 minutes. For 12 sizes, that is over an hour of downtime.

The Plastic Shopping Bag Making Machine is equipped with an Inovance PLC and a touch screen HMI. The operator saves profiles for each bag size: bag length, sealing temperature, cutting knife timing, photoelectric sensitivity, and feed length offset. When the 50x60cm order finishes and the 40x50cm order begins, the operator recalls the stored recipe. The servo‑driven mechanisms reposition automatically — the feed rollers advance the film by the new length, the sealing bar dwell time adjusts, and the photoelectric eye resets its sensitivity. The changeover takes under 5 minutes.

The PLC also tracks consumable life. The controller logs the number of sealing cycles and alerts the operator when the sealing bar or cutting knife is due for replacement. For a plant that runs two shifts, the preventive maintenance alert prevents the mid‑shift failure that stops production for an hour while a technician replaces a worn sealing tape. The automatic constant temperature control keeps the sealing bar within ±2°C of the setpoint, eliminating the temperature drift that causes weak seals as the machine warms up.

How the plastic garbage bag making machine fits into a bag converter's production line

Guoran Machinery has manufactured bag making equipment for the retail packaging industry. The Plastic Shopping Bag Making Machine is designed for converters producing grocery bags, trash can liners, eco‑friendly carrier bags, and merchandise bags. The machine uses 14mm steel plate construction, NSK bearings, Inovance PLC, Chint electrical components, Panasonic photoelectric eye, Schneider temperature control, and servo drive system. It is compatible with HDPE, LDPE, LLDPE, and biodegradable films.

A bag making machine that seals and cuts at 400 bags per minute, tracks printed registration marks without stopping, and stacks finished bundles while the operator walks away keeps a packaging line running through the shift. For a garbage bag converter running multiple sizes daily, the Guoran Plastic Shopping Bag Making Machine delivers the two‑line speed, recipe memory, and cold‑cut edge quality that keep the packing station supplied.

[Request a quote from Guoran Machinery]
Send Guoran your target bag size (length 260‑800mm, width 100‑400mm), thickness range (0.01‑0.05mm), and daily bag volume to receive a Plastic Shopping Bag Making Machine specification and recipe setup recommendation.
