PE vs Biodegradable Bag Making Machine

PE vs Biodegradable Bag Making Machine: Why Your Current Setup Might Not Work

A snack brand decided to go green. They swapped their conventional polyethylene packaging for a compostable PLA film. Same bag size. Same thickness. Same machine.

The result was a disaster.

Their existing equipment—perfectly tuned for PE—could not seal the new material. The PLA film melted through at standard temperatures. When they lowered the heat, seals failed during transit. Customer complaints arrived within two weeks: leaking pouches, popped seals, frustrated buyers.

The machine was not broken. The material was not defective. The problem was a fundamental mismatch between how conventional and compostable films behave on a bag making line.

The Physics of Sealing: PE vs. Bio-Polymers

Polyethylene (PE) is forgiving. It has a wide sealing window—typically 40–50°C between the temperature where it first seals and where it burns. This gives operators room for error.

Biodegradable films like PLA (polylactic acid) are not forgiving. Their sealing window is narrow—often 5–10°C. Too cold, and the seal lacks strength. Too hot, and the film crystallizes or melts through.

According to sealing performance data (ASTM F2029 standard for heat seal strength testing), the ideal seal initiation temperature for LDPE ranges from 120–150°C. For PLA, that range drops to 80–110°C, with a much steeper strength curve.

This difference alone explains why many companies struggle when switching material types. Their bag making machine lacks the precision to operate within PLA's narrow window.

Beyond Temperature: Three Critical Machine Differences

Here is what changes when you move from processing conventional PE to compostable or biodegradable films.

Temperature ranges compiled from material data sheets (NatureWorks PLA, ExxonMobil LDPE) and ASTM F2029 test protocols.

Real-world feedback from a flexible packaging converter: "We spent three months troubleshooting seal failures on a customer's compostable pouches. The problem was not their film formulation—it was that their bag machine's temperature controller drifted ±8°C. PE absorbed this. PLA did not." See how precision temperature control systems address this exact issue.

The Film Formulation Factor: Not All Biodegradable Films Are Equal

"Biodegradable" is not a single material. It is a category that includes:

• PLA (Polylactic acid): Corn or sugarcane based. Stiff, clear, low heat resistance. Best for dry, low-temperature applications.

• PBAT (Polybutylene adipate terephthalate): Petroleum-based but biodegradable. Soft, flexible, tougher than PLA. Often blended with PLA.

• PHA (Polyhydroxyalkanoate): Bio-based and marine-degradable. Expensive. Higher heat resistance than PLA.

• Starch blends: Low cost. Poor mechanical strength. Limited to certain bag styles.

Each formulation has different sealing requirements. A bag machine configured for pure PLA may fail on a PLA/PBAT blend because the PBAT component shifts the melt point upward by 10–15°C.

Before buying or converting equipment, request the material supplier's Technical Data Sheet (TDS). Look specifically for:

• Seal initiation temperature (SIT) – The minimum temperature for a functional seal

• Hot tack strength – Seal strength while still hot (critical for vertical form fill applications)

• Melt flow index (MFI) – How the material behaves under heat and pressure

The Cooling Problem Nobody Talks About

Here is something equipment brochures rarely mention: biodegradable films retain heat longer than PE.

After the sealing jaws open, a PLA seal continues to soften for 1–2 seconds. If nothing holds it in place, the seal distorts or pulls apart under its own weight—especially on larger bags.

The solution is active cooling:

• For smaller bags: Forced air directed at the seal area immediately after jaw opening

• For larger bags (over 300mm width): Water-cooled sealing jaws or a cooling station after the sealing zone

Many entry-level bag machines lack active cooling entirely. They assume the operator will slow down production speed to compensate. This defeats the purpose of automation.

Common Mistakes When Switching to Compostable Film

Based on reports from packaging engineers who have converted lines from PE to bio-based materials, here are four frequent errors.

Mistake 1: Keeping the same jaw pressure

PE can handle 5–6 bar of jaw pressure. PLA crushes under 4 bar. The excess pressure squeezes molten film outward, creating a thin, weak seal zone. Reduce pressure by 30–50% when switching to biodegradable films and test incrementally.

Mistake 2: Ignoring film slip properties

PE typically has a COF (coefficient of friction, ASTM D1894) of 0.2–0.35. Some biodegradable films—especially starch blends—have COF above 0.6. The film sticks to the forming collar and pulls unevenly. The fix is a different collar material (stainless steel instead of chrome) or an air lubrication system.

Mistake 3: Using the same sealing jaw surface

Standard flat chrome jaws work for most PE applications. Biodegradable films often release better from textured jaws or jaws coated with non-stick materials like PTFE. Without proper release, film sticks to the jaw and tears on opening.

Mistake 4: Overlooking storage conditions

PLA absorbs moisture. At humidity above 60%, PLA film becomes brittle and seals inconsistently. This is not a machine problem—it is a material handling problem. Dried film runs fine. Humid film fails. Keep biodegradable film rolls in climate-controlled storage until use.

Proactive step before conversion: Run a small batch of your target biodegradable film on a machine equipped with adjustable cooling and precision temperature control. This thirty-minute test reveals whether your existing equipment can handle the material or if an upgrade is necessary. Explore biodegradable-specific machine configurations with active cooling and precision PID controls.

Decision Framework: Keep, Modify, or Replace?

Your path forward depends on your current equipment and your volume commitment to sustainable packaging.

Scenario 1 – Occasional bio-film runs (less than 20% of production)

• Try: Operator training + reduced jaw pressure + slower line speed

• Risk: Inconsistent quality, higher reject rate

• Verdict: Manageable for small volumes, not recommended for high-stakes packaging

Scenario 2 – Dedicated lines for specific bio-products

• Try: Machine modification (new thermocouples, better PID controller, added cooling)

• Cost range: $3,000–$10,000 depending on machine age

• Verdict: Viable if your existing machine has good mechanical condition

Scenario 3 – Full conversion to biodegradable packaging

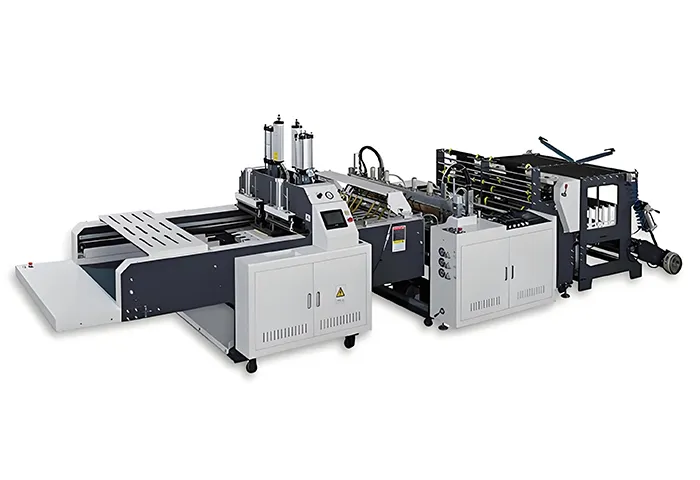

• Try: Dedicated bag making machine designed for bio-polymer processing

• Why: Precision temperature control, active cooling, adjustable jaw pressure range, and proper film handling surfaces are factory-integrated

• Verdict: Higher upfront investment, lower operating headache, consistent output quality

A Practical Starting Point

If you are reading this because your current machine struggles with compostable film, here is a three-step diagnosis you can complete today.

Step 1 – Check your temperature controller

What is the displayed temperature variation during operation? If it swings more than ±3°C, your machine lacks the precision for PLA or similar materials.

Step 2 – Inspect your sealing jaw surface

Are there residue marks or stuck film pieces? This indicates release problems common with bio-materials.

Step 3 – Feel the seal area immediately after sealing

Is it still warm after the jaws have opened for two seconds? If yes, you need active cooling for consistent results at any reasonable speed.

The Bottom Line

PE and biodegradable films look similar on a roll. They do not behave similarly on a bag making machine. The differences in sealing temperature range, cooling requirements, and slip properties mean that a machine designed for conventional polyethylene often fails on compostable alternatives—not because it is a bad machine, but because it is the wrong match.

Sustainable packaging is not a trend. It is a response to regulation and customer demand. But switching materials without switching machine capabilities creates waste, not environmental benefit. Rejected bags, returned shipments, and resealing labor all carry a carbon cost.

The right approach is matching machine capability to material science. When the equipment is designed for the film it runs, quality improves and waste drops.

When you are ready to move beyond trial and error—or to spec a dedicated line for compostable films—you can review bag machine specifications optimized for PLA, PBAT, and other bio-polymer films.

Still unsure whether your current machine can be retrofitted or needs full replacement? A fifteen-minute review of your film TDS and current machine specs provides a clear answer. Most packaging engineers will do this at no charge—because solving the mismatch benefits everyone.
