High-speed film blowing machine is an industrial equipment designed to produce plastic films efficiently and continuously. The machine transforms raw plastic into thin, flexible films. It does so by extruding molten plastic through a circular die, then forming a bubble. This bubble is inflated, cooled, and collapsed to create a flat film for winding. The high-speed label indicates greater output. This is achieved using new screw designs, improved cooling, and automation controls. These machines offer higher output, consistency, and better energy efficiency than conventional equipment. As a result, they are indispensable in packaging production lines.
How Does a High-Speed Film Blowing Machine Work?
The operation of a high-speed film blowing machine is a fascinating blend of precision engineering and material science. It begins with plastic resin pellets, typically PE (Polyethylene) materials like LDPE (Low-Density Polyethylene), HDPE (High-Density Polyethylene), or LLDPE (Linear Low-Density Polyethylene), being fed into the machine's hopper.
The resin then travels into the barrel, where a rotating screw—often with an optimized long ratio L/D (like 28:1 or 30:1)—conveys it forward. The mechanical energy from the screw rotation, combined with external heating, melts the plastic into a uniform molten state. This molten plastic is forced through a circular die head, forming a continuous tube-like shape.
As the tube emerges, air is injected through the center of the die, inflating it into a bubble of the desired diameter and thickness. Critical to the high-speed process is the rapid and uniform cooling of this bubble, often achieved by sophisticated high-speed cooling wind rings surrounding the film bubble. The cooled film is then collapsed into a flat layer by guide rollers and wound into rolls for subsequent conversion into packaging products.
Advantages of High-Speed Film Blowing Technology
High-speed film blowing machines offer significant advantages over traditional equipment. Their enhanced production output is a primary benefit, with some industrial models capable of outputs exceeding 200 kg/h. This increased capacity directly boosts manufacturing efficiency and meets the demands of large-scale production.
Energy efficiency is another crucial advantage. Many contemporary models incorporate frequency control inverter systems for main motor speed regulation, which can save electricity by up to 30% compared to conventional drives. This reduces operational expenses and environmental impact.
Furthermore, these machines produce superior quality film with consistent thickness and enhanced physical properties. The precise control over the process parameters allows manufacturers to produce films with specific characteristics, such as improved tensile strength, better clarity, or enhanced sealability, meeting diverse packaging requirements.
Introducing a Solution for Demanding Production Needs

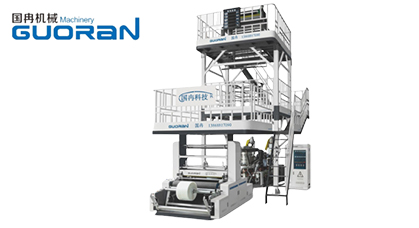

For businesses seeking to upgrade their packaging film production, the Guoran Two-layer Co-extrusion PE High-speed Film Blowing Machine presents a technologically advanced solution. This equipment is engineered for efficiency and versatility in producing high-quality plastic films.
A standout feature of this machine is its specially designed screw that delivers superior plasticizing capability, which directly enhances production capacity while maintaining consistent film quality. It is engineered to process various polyethylene materials, including low density polyethylene (LDPE), high density polyethylene (HDPE), and linear low density polyethylene (LLDPE).
The versatility of this co-extrusion film blowing machine makes it invaluable across numerous packaging applications. It is effectively applied to producing packaging bags for foodstuff, clothing, and specialized bags like rubbish bags and vest bags. The ability to produce two-layer films expands the potential for creating structures with different properties in each layer, optimizing performance and potentially reducing material costs.
Applications and Use Cases for High-Speed Blown Film
The films produced by high-speed film blowing machines are integral to countless everyday products. In the food packaging sector, they provide protective barriers for fresh produce, meats, and snacks, extending shelf life and ensuring product safety. The agricultural industry relies on these films for greenhouse covers, crop protection, and silage bags.
In the retail and apparel sector, the films are transformed into lightweight, durable packaging for garments and merchandise. Specialty bags—including trash bags, shopping bags, and vest-type bags—represent another significant application area, demanding consistent quality and high production volumes.
The industrial packaging market utilizes these films for protective wrapping, pallet stabilization, and as barriers against moisture and dust during transportation and storage. The adaptability of the blown film process allows manufacturers to tailor film properties—such as thickness, strength, and clarity—to meet these diverse application requirements precisely.
