Bag Width:280-700mmx2
Bag Length:450mmx2
Thickness:0.01-0.035mm
Production Speed:100-280pcs/minx2
It is easy to operate and can produce double color printing bags at the same time. The main engine adopts the inverter to simulate the speed adjustment,and the automatic feeding system can simulate the material smoothly and evenly.

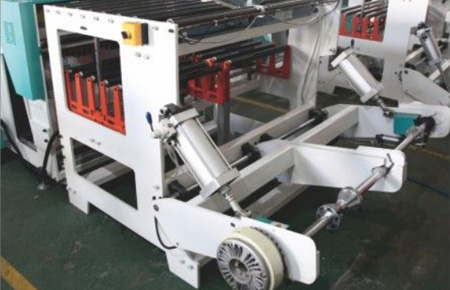

The material is used to brake the magnetic powder brake,the air rising type feed shaft,the pneumatic lifting and lifting frame,the pneumatic and up parallel feeding system. The complete set of feeding system is simple and convenient to operate with the manual heat machine.

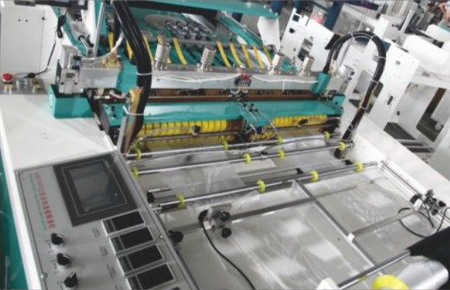

The cutting mechanism adopts full servo control and ensures the precision, speed and stability of the punching. This machine adopts steel plate structure, strong strength,small deformation and high precision. The machine parts, pneumatic parts from Panasonic, SMC,Taiwan Yangming, JiuLi, domestic Inovance and other leading brands.Ensure the long-term stable operation of the equipment.
| Model | GR-500×2 |
| Max Width | 450mmx2 |
| Max Length | 280-700mmx2 |
| Bag-making Thickness | 0.01-0.035mm |
| Bag-making Speed | 100-280pcs/minx2 |
| Line speed | 150m |
| Air Pressure | 0.6-0.8Kg |
| Main Power | 12KW |
| Weight | 3200kg |
| Overall Dimension | 6500×1800x1900mm |
Bag Width:650mm
Bag Length:300-1000mm
Thickness:0.01-0.035mm
Production Speed:100-400pcs/min
Bag Width:180-430mm*2
Bag Length:280-700mm*2
Thickness:0.01-0.05mm
Production Speed:100-380pcs/min*2
Bag Cutting Width:420mm*2
Bag Length:800mm
Thickness:0.008-0.016mm
Production Speed:40-350pcs/min
