WFB-D600

Non-woven high-speed T-shirt Bag Making Machine

Guoran proudly introduces its cutting-edge Non-woven high-speed T-shirt Bag Making Machine, showcasing a commitment to high quality and customization. Choose Guoran for your non-woven T-shirt bag manufacturing requirements, where expertise and dedication to quality manufacturing converge to provide optimal solutions for achieving superior results.

Bag Width:200mm-600mm

Bag Length:200mm-999mm

Thickness:18-90g

Production Speed:50-120pcs/min

GET A QUOTE →
Compare
Non-woven high-speed T-shirt Bag Making Machine
Non-woven high-speed T-shirt Bag Making Machine
upload/1c/202507/fully-automatic-paper-bags-making-machine-1.jpg
upload/1c/202507/fully-automatic-paper-bags-making-machine-2.jpg
upload/1c/202507/fully-automatic-paper-bags-making-machine-3.jpg
upload/1c/202506/p-c-3.jpg
DESCRIPTIONS

As a distinguished Non-woven high-speed T-shirt Bag Making Machine supplier with a state-of-the-art factory, Guoran is a trusted leader in providing tailored solutions for industrial applications. The Non-woven High-Speed T-shirt Bag Making Machine by Guoran exemplifies precision and innovation, ensuring the production of high-quality and customized non-woven T-shirt bags with remarkable speed. Setting industry benchmarks, Guoran delivers top-tier machines that meet the highest quality standards and cater to unique customization needs.

MACHINE HIGHLIGHTS

This machine is an ideal equipment for non-woven flat bags, U-cut bags, string bags, T-shirt bags, etc.

Automatic punching, automatic counting alarm, automatic feeding, automatic stop when labels are lost.

PARAMETERS
Model WFB-D600
Maximum material width 200mm-1200mm
Maximum bag making width 200mm-600mm
Maximum bag length 200mm-999mm
Bag thickness 18-90g
Speed 50-120pcs/min
Total power 10KW
Weight 2800kg
Dimension 10800*1800*2000mm
CORE COMPONENT
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-01.jpg

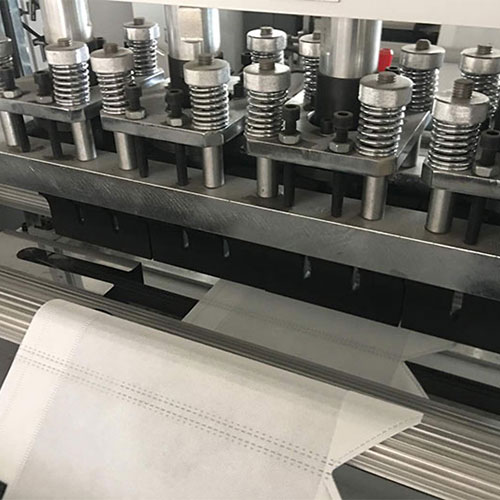

The heat sealing part adopts 4 sets of ultrasonic independent control. When making small bags, unnecessary ultrasonic waves can be turned off to save energy. Shock absorption can reduce horn wear and extend service life.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-02.jpg

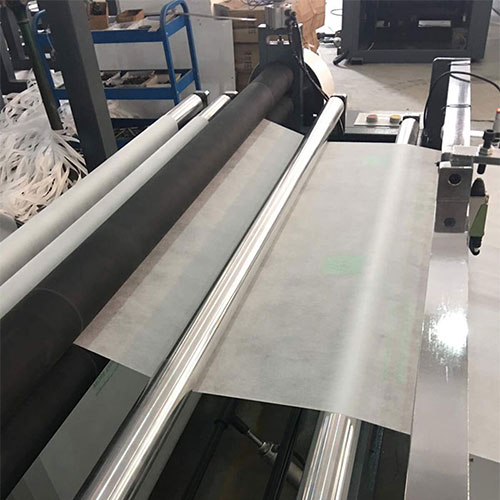

High-quality aluminum rollers provide smooth feeding and reduce fabric elongation, especially suitable for thin fabrics.

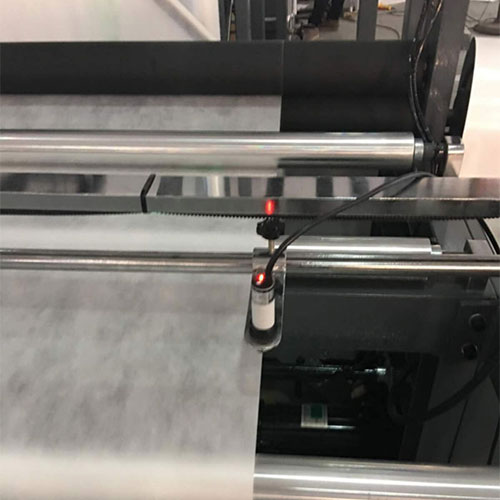

upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-03.jpg
High-quality sensors align the fabric to make the bag flat.

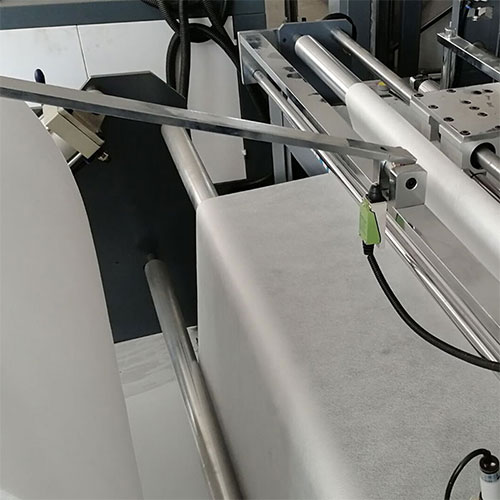

upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-04.jpg
Proximity switch, automatically stops when the material is almost used up.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-05.jpg

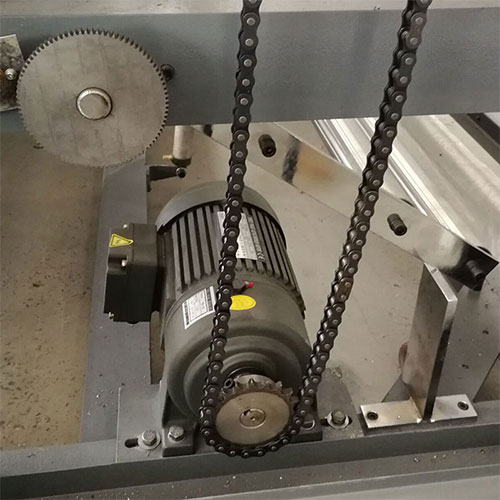

Frequency conversion motor feeding, synchronously controlled with the main motor.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-06.jpg

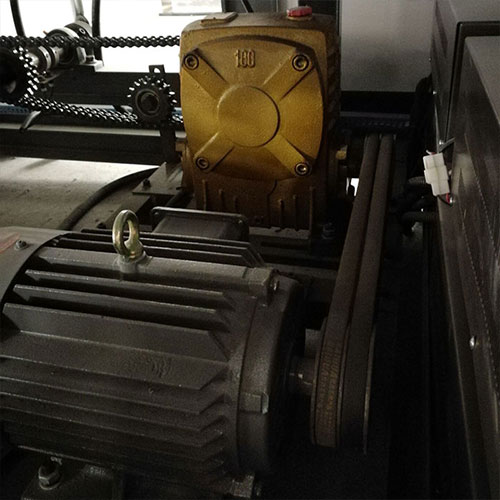

The main motor adopts variable frequency motor, which saves energy and is easy to operate.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-07.jpg

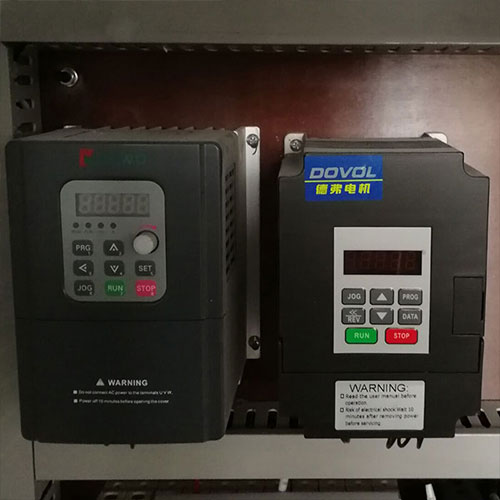

Set up the inverter to control the variable frequency motor.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-08.jpg

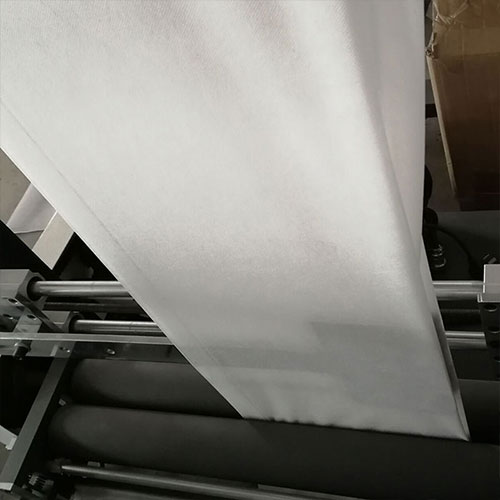

Insert device to make gusset bags, such as bottom gusset bags, U-shaped bags, box bags.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-09.jpg

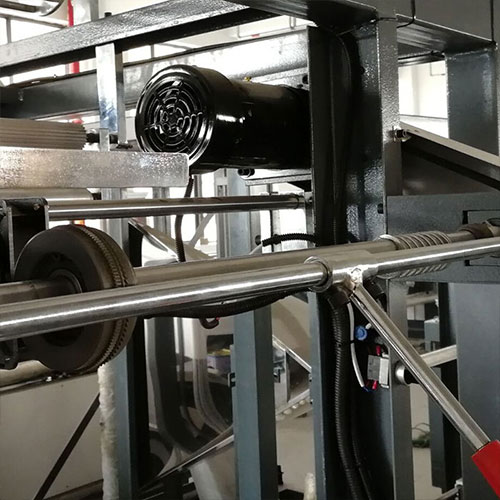

Roller ultrasonic side sealing, (for U-shaped cutting bags).
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-10.jpg

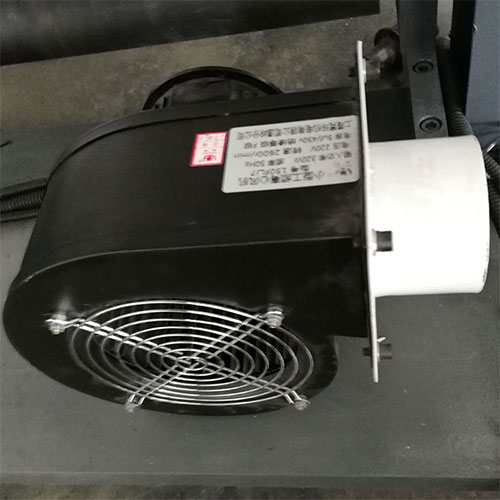

The blower will pick out the waste fabric when making U-shaped bags.

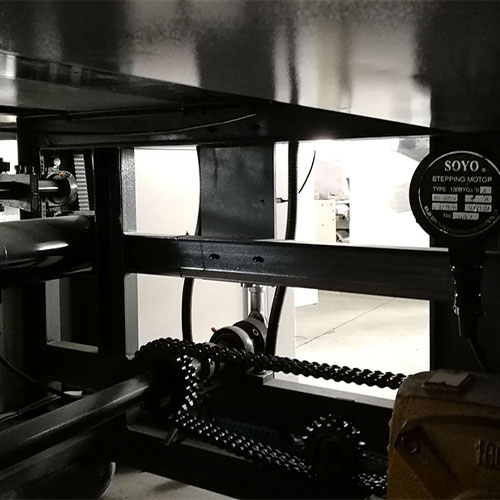

upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-11.jpg
Dual stepper motor pulls cloth, lower elongation rate, and more accurate bag length control.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-12.jpg

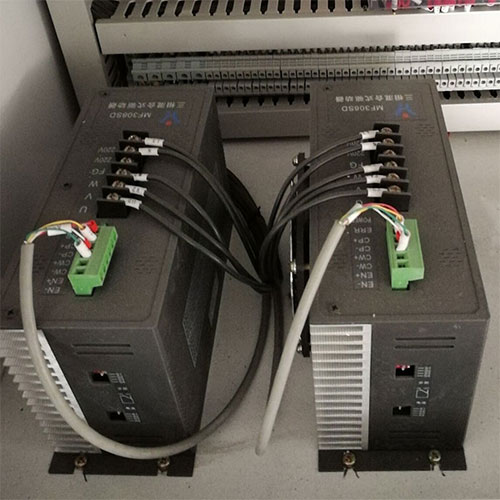

Stepper Motor Driver.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-13.jpg

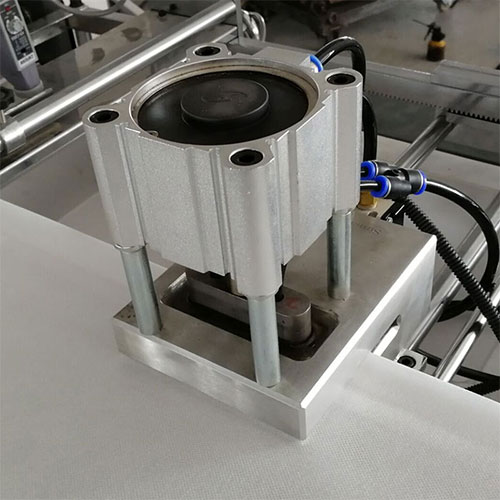

D-cut puncher.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-14.jpg

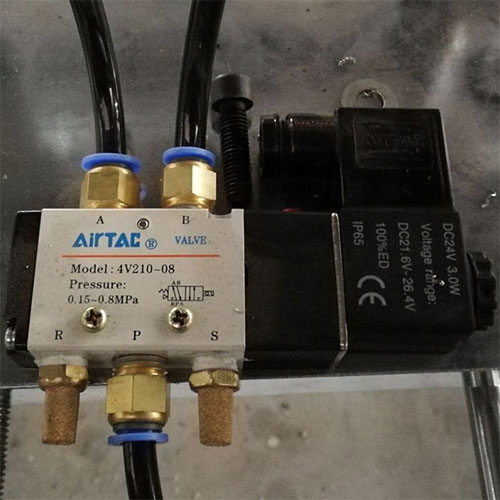

The electromagnetic valve Airtac brand, made in Taiwan.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-15.jpg

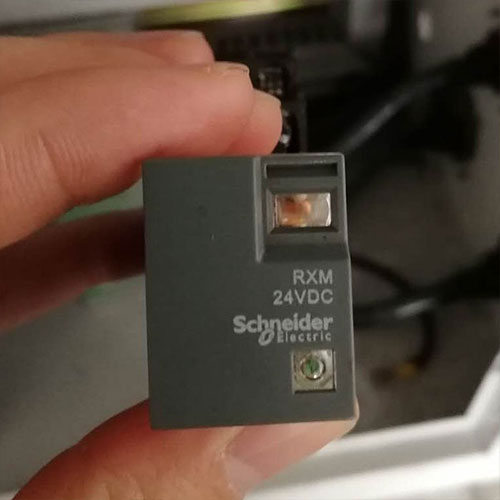

Electrical switch Schneider.
upload/1c/202507/non-woven-high-speed-t-shirt-bag-making-machine-16.jpg

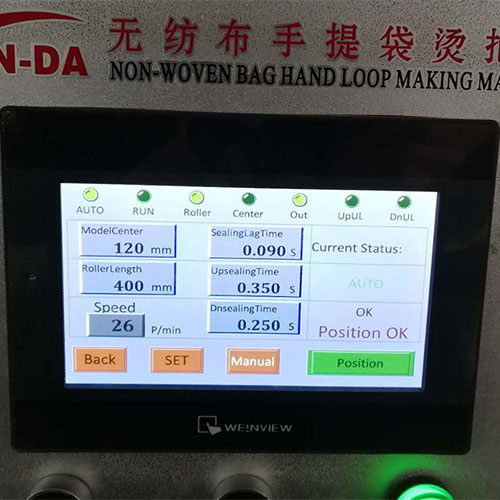

Touch screen Weinview brand Made in Taiwan.
OPTIONAL ACCESSORIES
GT-A1300 Horizontal Slitting Machine
Optical and Electrical Correction Frame
JL-8T Hydraulic Punching Machine
Auto Loader
FS-250 Plastic Grind Machine
BGDC-200【300】Plastic Film Impactor
Taiwan OUGUAN Fan Blower
Mould
Vertical Mixer
Horizontal Mixer
Air Cooler
Pneumatic Punching
Hdpe Air Ring With Double Tuyere
Reducer
Servo Motor
upload/1c/202507/ACCESSORIES-1.jpg
GT-A1300 Horizontal Slitting Machine
upload/1c/202507/ACCESSORIES-2.jpg
Optical and Electrical Correction Frame
upload/1c/202507/ACCESSORIES-15.jpg
JL-8T Hydraulic Punching Machine
upload/1c/202507/ACCESSORIES-3.jpg
Auto Loader
upload/1c/202507/ACCESSORIES-4.jpg
FS-250 Plastic Grind Machine
upload/1c/202507/ACCESSORIES-5.jpg
BGDC-200【300】Plastic Film Impactor
upload/1c/202507/ACCESSORIES-6.jpg
Taiwan OUGUAN Fan Blower
upload/1c/202507/ACCESSORIES-7.jpg
Mould
upload/1c/202507/ACCESSORIES-8.jpg
Vertical Mixer
upload/1c/202507/ACCESSORIES-9.jpg
Horizontal Mixer
upload/1c/202507/ACCESSORIES-10.jpg
Air Cooler
upload/1c/202507/ACCESSORIES-11.jpg
Pneumatic Punching
upload/1c/202507/ACCESSORIES-14.jpg
Hdpe Air Ring With Double Tuyere
upload/1c/202507/ACCESSORIES-12.jpg
Reducer
upload/1c/202507/ACCESSORIES-13.jpg
Servo Motor
RECOMMENDED MODELS
Opp Bag Making Machine
Opp Bag Making Machine

Bag Width: 550mm

Bag Length: 750mm

Production Speed: 30-200Pcs/min

Fully Automatic Woven Bag Cutting And Sewing Machine
Fully Automatic Woven Bag Cutting And Sewing Machine

Bag Width:450-800mm

Bag Length:550-1300mm

Substrate Specifications:∅1100x1200mm

Production Speed:23-60Bag/min

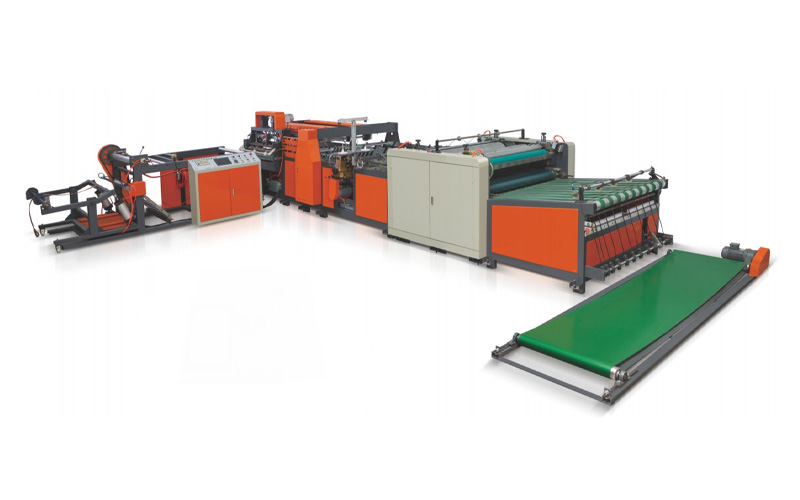

Fully Automatic Woven Bag Cutting, Sewing And Printing All-in-one Machine
