GR-400/500/550×2

Fully Biodegradable PE T-shirt High Speed Bag Making Machine

The machine adopts INOVANCE servo motor control system and computer control,and the 7-inch touch screen is displayed with the panasonic photoelectric eye tracking control. It is easy to operate and can produce double color printing bags at the same time.

Bag Width:450mmx2

Bag Length:280-700mmx2

Thickness:0.01-0.035mm

Production Speed:100-400pcs/minx2

GET A QUOTE →

Fully Biodegradable PE T-shirt High Speed Bag Making Machine

DESCRIPTIONS
MACHINE HIGHLIGHTS
PARAMETERS
CORE COMPONENT
OPTIONAL ACCESSORIES

DESCRIPTIONS

The equipment adopts a vacuum-cast epoxy resin monolithic structure, with key components sourced from international brands such as Panasonic, SMC, and Huichuan. It can operate stably in workshop environments ranging from -30°C to +50°C. The modular design enables quick replacement of key components such as cutting blades within 10 minutes. It is equipped with a fault self-diagnosis system, effectively reducing downtime by 90% and ensuring production continuity.

MACHINE HIGHLIGHTS

The material is used to brake the magnetic powder brake, the air rising type feed shaft, the pneumatic lifting and lifting frame, the pneumatic and up parallel feeding system.

The complete set of feeding system is simple and convenient to operate with the manual heat machine.

The cutting mechanism adopts fullservo control and ensures the precision, speed and stability of the punching.

This machine adopts steel plate structure, strong strength,small deformation and high precision.

The machine parts,pneumatic parts from Panasonic, SMC, Taiwan Yangming, JiuLi, domestic Inovance and other leading brands. Ensure the long-term stable operation of the equipment.

PARAMETERS

Model	GR-400/500/550×2
Max Width	450mmx2
Max Length	280-700mmx2
Bag-making Thickness	0.01-0.035mm
Bag-making Speed	100-400pcs/minx2
Line speed	150m
Air Pressure	10HP
Main Power	12KW
Weight	3200kg
Overall Dimension	6500×2800x1900mm

CORE COMPONENT

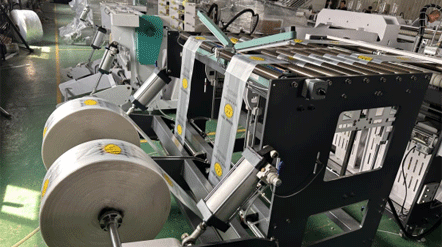

Feeding System

Adopting a dual-channel independent feeding structure, two bag-making channels can be operated simultaneously, increasing production capacity to a maximum of 800 bags per minute.

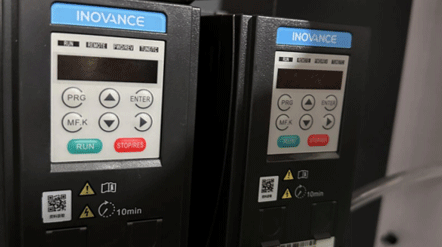

Servo Motor Drive

Improve bag making accuracy, with an error of less than ±1mm, effectively reducing material waste and improving yield.

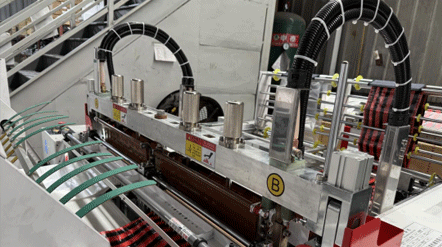

Sealing & Cutting Unit

Continuous heat sealing and cutting is achieved using constant temperature control technology and high-performance heating strips.

Punching Unit

Punching dies and hydraulic systems designed specifically for vest bags, automatically punch holes for handles.

Touchscreen Control Panel

Quick parameter settings, automatic alarm and fault alert functions, improving operational safety and convenience.

Bag Collection Unit

Automatic material collection mechanism, with optional automatic counting and stacking functions.

OPTIONAL ACCESSORIES

GT-A1300 Horizontal Slitting Machine

Optical and Electrical Correction Frame

JL-8T Hydraulic Punching Machine

Auto Loader

FS-250 Plastic Grind Machine

BGDC-200【300】Plastic Film Impactor

Taiwan OUGUAN Fan Blower

Mould

Vertical Mixer

Horizontal Mixer

Air Cooler

Pneumatic Punching

Hdpe Air Ring With Double Tuyere

Reducer

Servo Motor

GT-A1300 Horizontal Slitting Machine

Optical and Electrical Correction Frame

JL-8T Hydraulic Punching Machine

Auto Loader

FS-250 Plastic Grind Machine

BGDC-200【300】Plastic Film Impactor

Taiwan OUGUAN Fan Blower

Mould

Vertical Mixer

Horizontal Mixer

Air Cooler

Pneumatic Punching

Hdpe Air Ring With Double Tuyere

Reducer

Servo Motor

RECOMMENDED MODELS

Hot Cutting Heat Sealing Computer Controlled Biodegradable Bag Making Machine

Bag Width:180-450mm×2

Bag Length:280-700mm*2

Thickness:0.01-0.05mm

Production Speed:100-400pcs/min*2

Cloth Bag Making Machine

Bag Width:180-850mm×1

Bag Length:350-1400mm*1

Thickness:0.01-0.05mm

Production Speed:100-400pcs/min

Cloth Bag Making Machine

Bag Width:180-850mm×1

Bag Length:350-1400mm*1

Thickness:0.01-0.05mm

Production Speed:100-400pcs/min

PERHAPS YOU HAVE OTHER BAG MAKING NEEDS?

In order to ensure that the production fully meets your needs, we also provide professional bag-making machine customization service, which can be adjusted individually according to your actual production needs, including special sizes, material adaptation and function expansion, etc., to ensure that the equipment perfectly matches your production requirements.
