GRTB4-600/800/1000

Stack Type Four-Colors High Speed Flexographic Printing Machine

Priting Width:560mm

Printing Speed:30-70m/min

Max Width of Material:600mm

Priting Color:4Colors

GET A QUOTE →

Stack Type Four-Colors High Speed Flexographic Printing Machine

DESCRIPTIONS
MACHINE HIGHLIGHTS
PARAMETERS
CORE COMPONENT
OPTIONAL ACCESSORIES

PARAMETERS

Model	GRTB4-600	GRTB4-800	GRTB4-1000
Max Width of Material	600mm	800mm	1000mm
Max Priting Width	560mm	760mm	960mm
Suitable Material	Papers, film, no-woven fabric, foils
Priting Color	4Colors	4 Colors	4 Colors
Max Priting Speed	10-50m/min	10-50m/min	10-50m/min
Thickness of Plate	2.38mm	2.38mm	2.38mm
Machine Weight	2500kg	2700kg	3000kg
Machine Dimension (LxWxH)	4.5×1.6×2.2m	4.5×1.8×2.2m	4.5×2.0×2.2m

OPTIONAL ACCESSORIES

GT-A1300 Horizontal Slitting Machine

Optical and Electrical Correction Frame

JL-8T Hydraulic Punching Machine

Auto Loader

FS-250 Plastic Grind Machine

BGDC-200【300】Plastic Film Impactor

Taiwan OUGUAN Fan Blower

Mould

Vertical Mixer

Horizontal Mixer

Air Cooler

Pneumatic Punching

Hdpe Air Ring With Double Tuyere

Reducer

Servo Motor

GT-A1300 Horizontal Slitting Machine

Optical and Electrical Correction Frame

JL-8T Hydraulic Punching Machine

Auto Loader

FS-250 Plastic Grind Machine

BGDC-200【300】Plastic Film Impactor

Taiwan OUGUAN Fan Blower

Mould

Vertical Mixer

Horizontal Mixer

Air Cooler

Pneumatic Punching

Hdpe Air Ring With Double Tuyere

Reducer

Servo Motor

RECOMMENDED MODELS

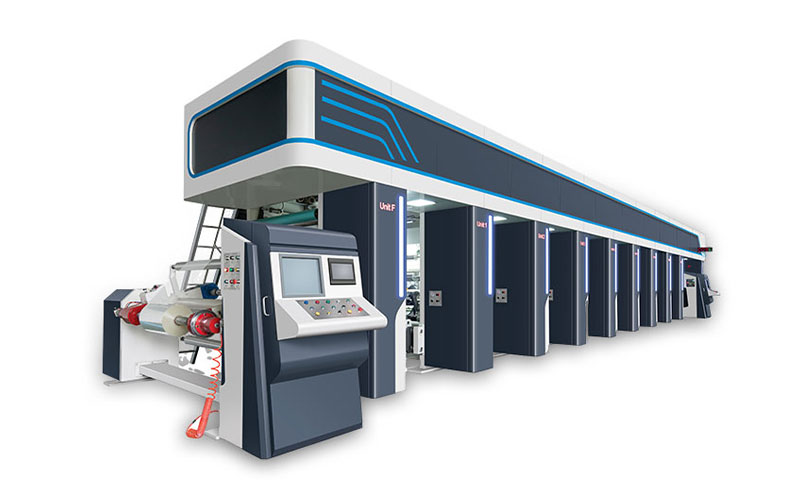

Ordinary Gravure Machine

Printing Width:600mm

Printing Speed:30-70m/min

Printing Cylinder Diameter:Φ70-300

Priting Color:4Colors

Flexo Printing Machine

Gravure Printing Machine

Max.web width:650-2050mm

Printing speed: 320m/min

Dia. of unwind and rewind:φ600,800, 1000mm

Dia. of printing cylinder:φ100-300mm

PERHAPS YOU HAVE OTHER BAG MAKING NEEDS?

In order to ensure that the production fully meets your needs, we also provide professional bag-making machine customization service, which can be adjusted individually according to your actual production needs, including special sizes, material adaptation and function expansion, etc., to ensure that the equipment perfectly matches your production requirements.
